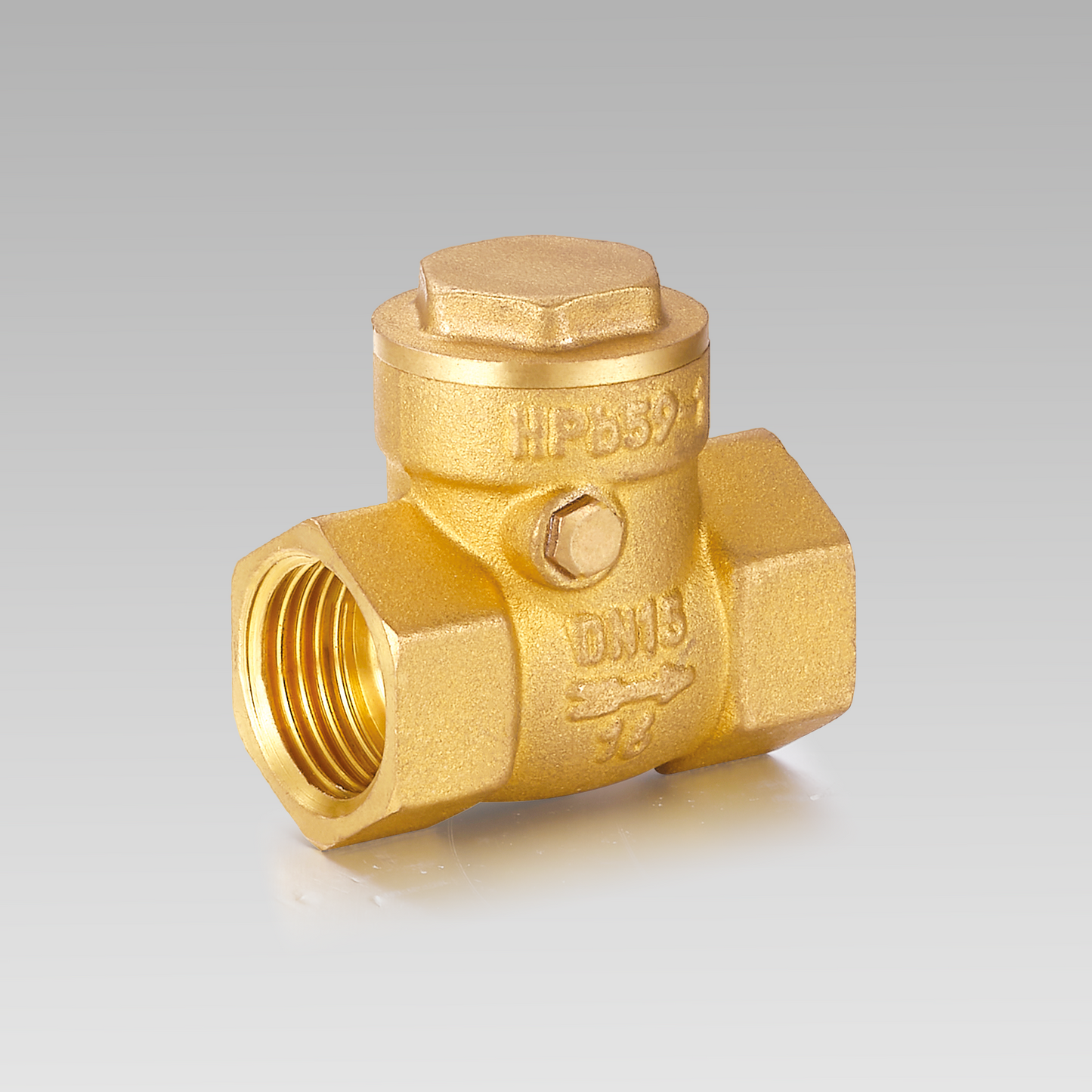

Brass horizontal check valve YH-402

Brass horizontal check valve YH-402

100 in stock

YH-402

Expected delivery date:
13 Nov Usually ready in 2-3 days.
Note: This is a demo store. The images have been sourced from Shutterstock and Adobe Stock.

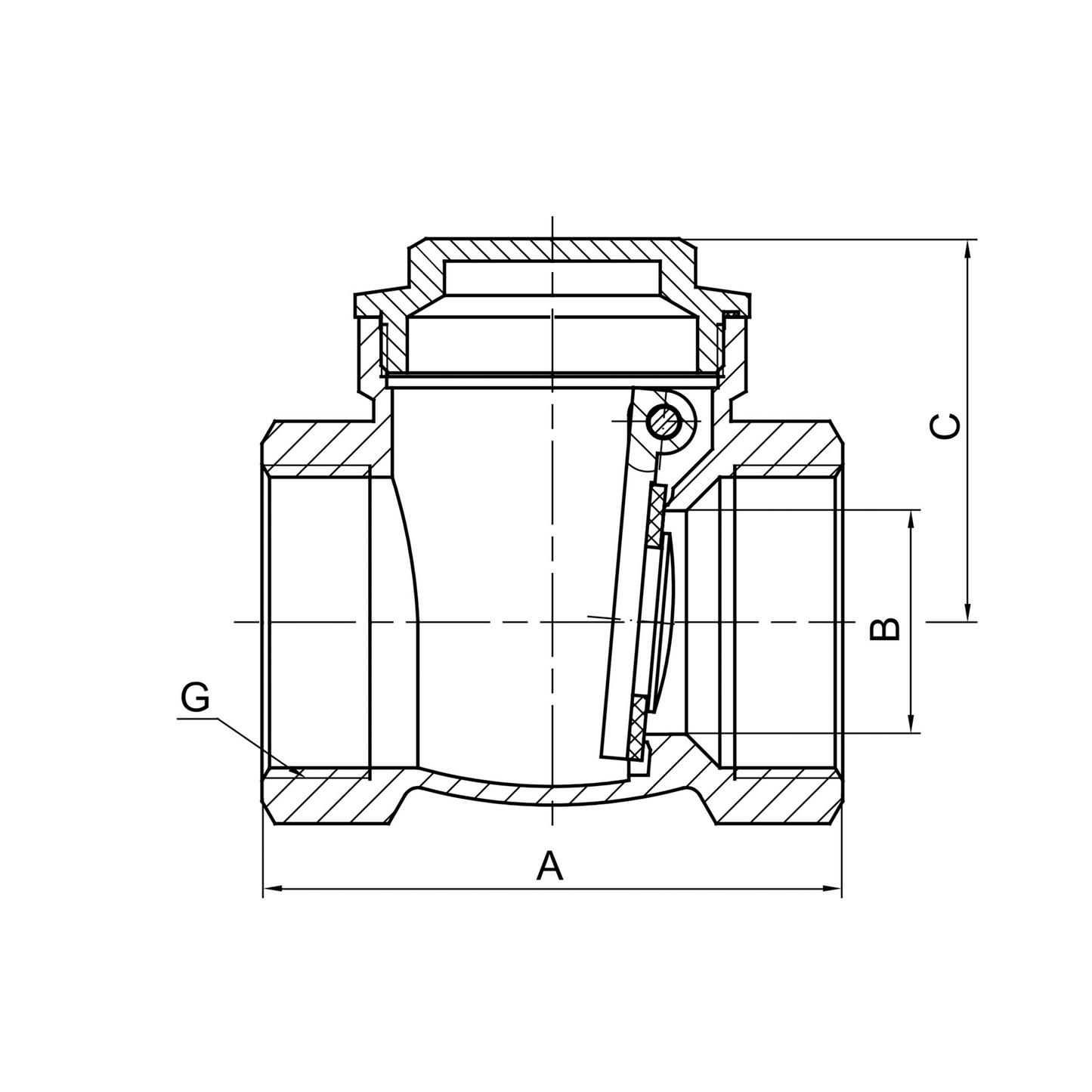

Specifications and size

DN15 1/2":

A: 48mm B: 13mm C: 34mm G: 1/2"

DN20 3/4":

A: 59mm B: 17mm C: 40.5mm G: 3/4"

DN25 1":

A: 68mm B: 23mm C: 46mm G: 1"

————————————————————————————————————————————————

DN32 1 1/4":

A: 78mm B: 30mm C: 51.5mm G: 1 1/4"

DN40 1 1/2":

A: 88mm B: 35mm C: 57.5mm G: 1 1/2"

DN50 2":

A: 105mm B: 45mm C: 68.5mm G: 2"

————————————————————————————————————————————————

DN65 2 1/2":

A: 130mm B: 63mm C: 85.5mm G: 2 1/2"

DN80 3":

A: 147mm B: 75mm C: 95.5mm G: 3"

DN100 4":

A: 180mm B: 93mm C: 116.5mm G: 4"

Specifications

x

Battery

x

Product title

Nominal Pressure:

1.6MPa

Working Medium:

Water, non-corrosive liquid;

Working Temperature:

0℃≤t≤120℃

Size

1/2", 3/4", 1", 1 1/4", 1 1/2", 2"

Thread

Parallel Pipe Thread to ISO228.
