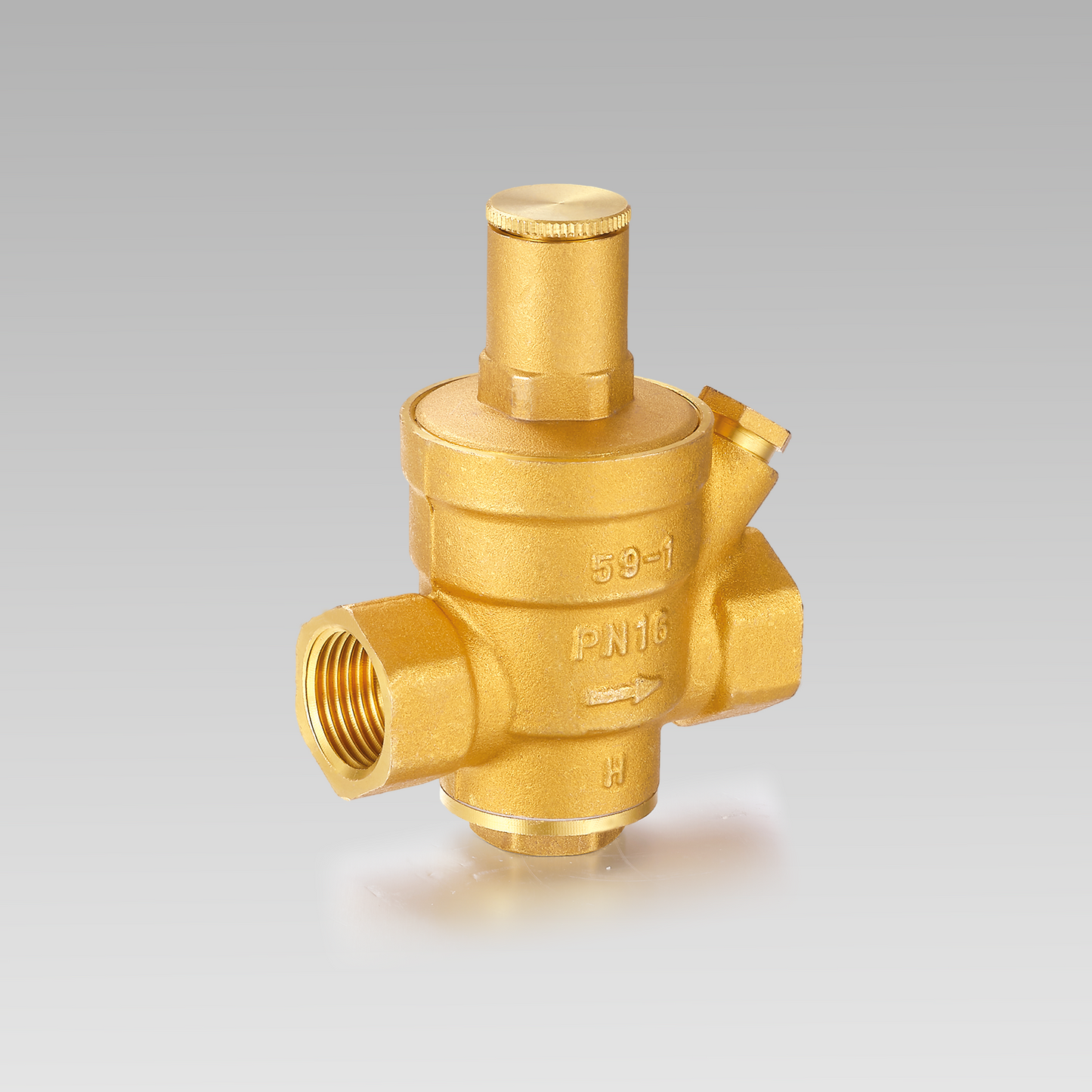

Brass reducing valve YH-601

Brass reducing valve YH-601

100 in stock

YH-601

Expected delivery date:
27 Sep Usually ready in 2-3 days.
Note: This is a demo store. The images have been sourced from Shutterstock and Adobe Stock.

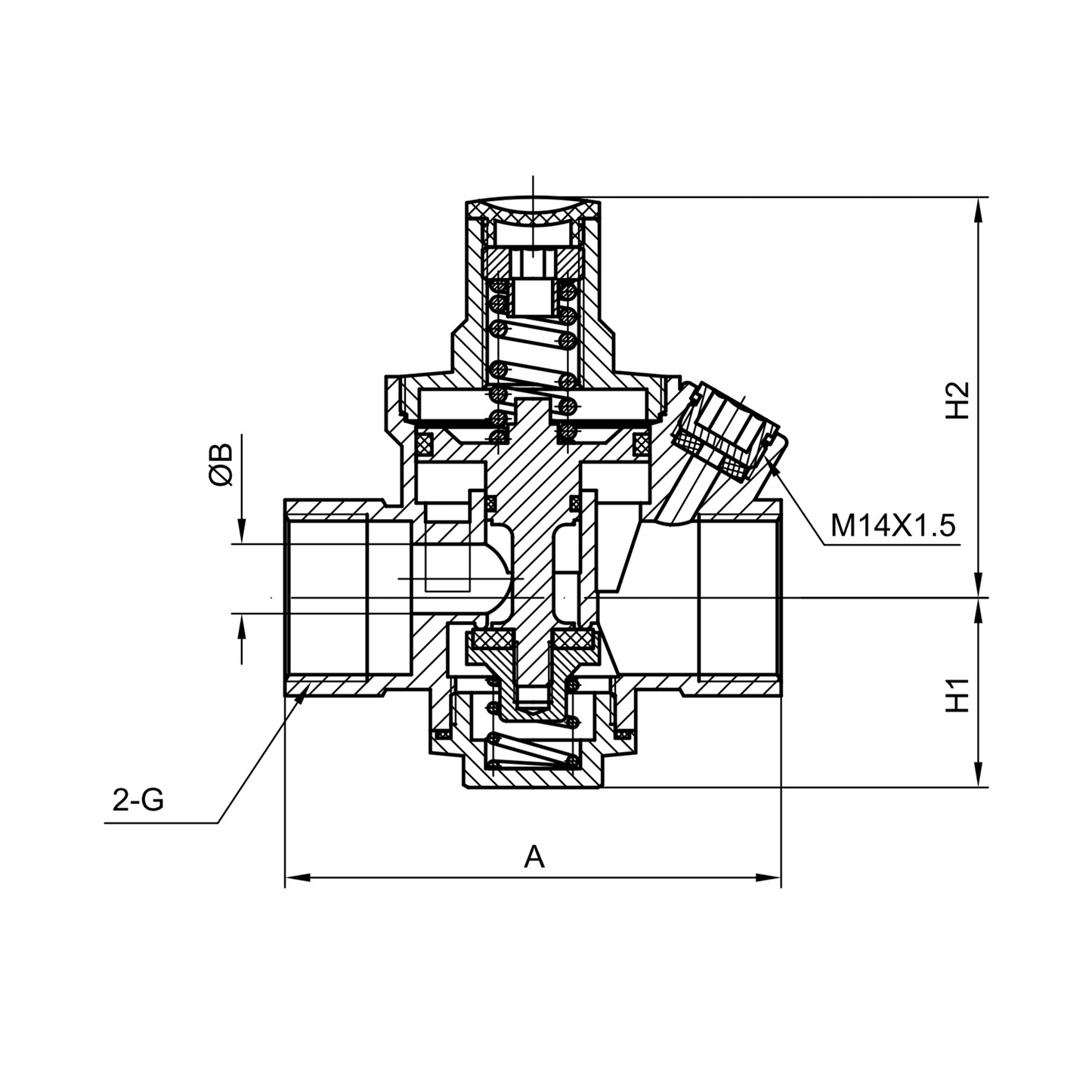

Specifications and size

DN15 1/2":

A: 78mm B: 11mm H1: 29.5mm H2: 64mm G: 1/2"

DN20 3/4":

A: 78.5mm B: 11mm H1: 30mm H2: 63.5mm G: 3/4"

DN25 1":

A: 85mm B: 15mm H1: 35.5mm H2: 77mm G: 1"

————————————————————————————————————————————————

DN32 1 1/4":

A: 85mm B: 18mm H1: 37mm H2: 79.5mm G: 1 1/4"

DN40 1 1/2":

A: 103mm B: 22.5mm H1: 47.5mm H2: 104.7mm G: 1 1/2"

DN50 2":

A: 120mm B: 27.5*22.5mm H1: 47.5mm H2: 104.8mm G: 2"

Specifications

x

Battery

x

Product title

Nominal Pressure:

1.6MPa

Working Medium:

Water, non-corrosive liquid;

Working Temperature:

0℃≤t≤120℃

Size

1/2", 3/4", 1", 1 1/4", 1 1/2", 2"

Thread

Parallel Pipe Thread to ISO228.
