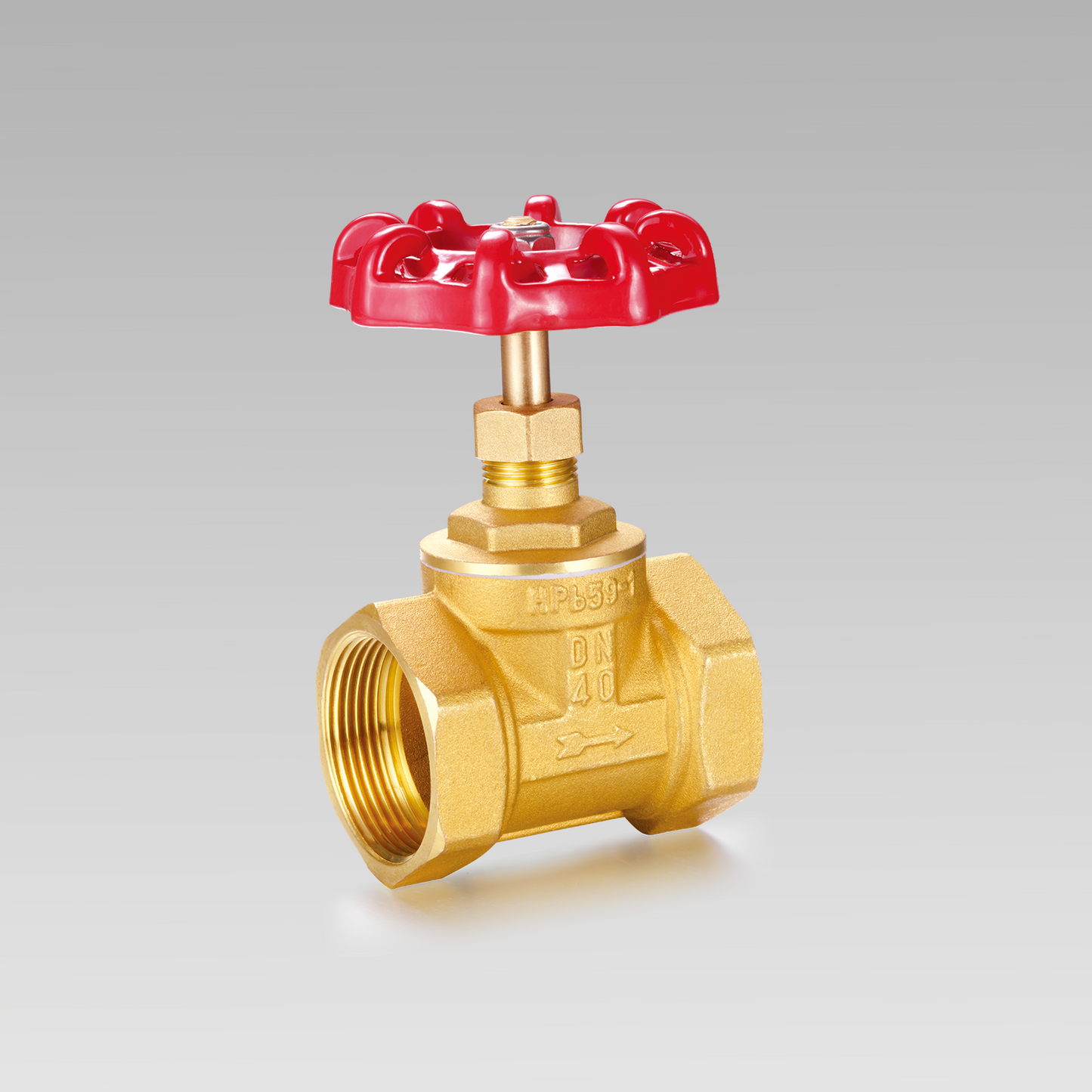

Brass globe valve YH-301

Brass globe valve YH-301

100 in stock

YH-301

Expected delivery date:
13 Nov Usually ready in 2-3 days.
Note: This is a demo store. The images have been sourced from Shutterstock and Adobe Stock.

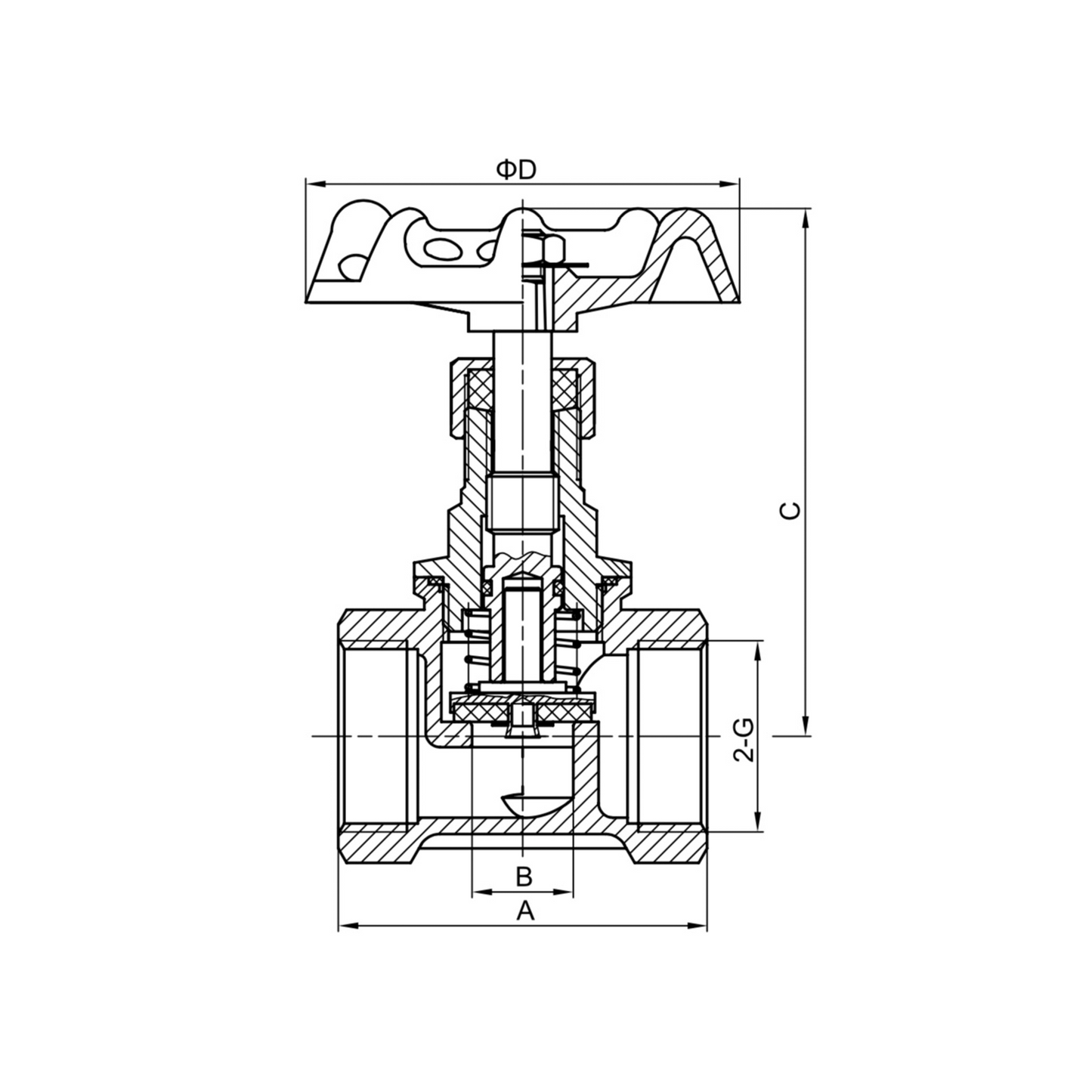

Specifications and size

DN15 1/2":

A: 45mm B: 12mm C: 66-72mm D: 54mm G: 1/2"

DN20 3/4":

A: 51mm B: 16mm C: 73-79mm D: 60mm G: 3/4"

DN25 1":

A: 64.5mm B: 22mm C: 82-90mm D: 72mm G: 1"

————————————————————————————————————————————————

DN32 1 1/4":

A: 75mm B: 26mm C: 95-104mm D: 80mm G: 1 1/4"

DN40 1 1/2":

A: 82mm B: 32mm C: 112-125mm D: 80mm G: 1 1/2"

DN50 2":

A: 100mm B: 41mm C: 124.5-137.5mm D: 100mm G: 2"

Specifications

x

Battery

x

Product title

Nominal Pressure:

1.6MPa

Working Medium:

Water, non-corrosive liquid;

Working Temperature:

0℃≤t≤120℃

Size

1/2", 3/4", 1", 1 1/4", 1 1/2", 2"

Thread

Parallel Pipe Thread to ISO228.

Brass globe valve YH-301

Brass globe valve YH-301
