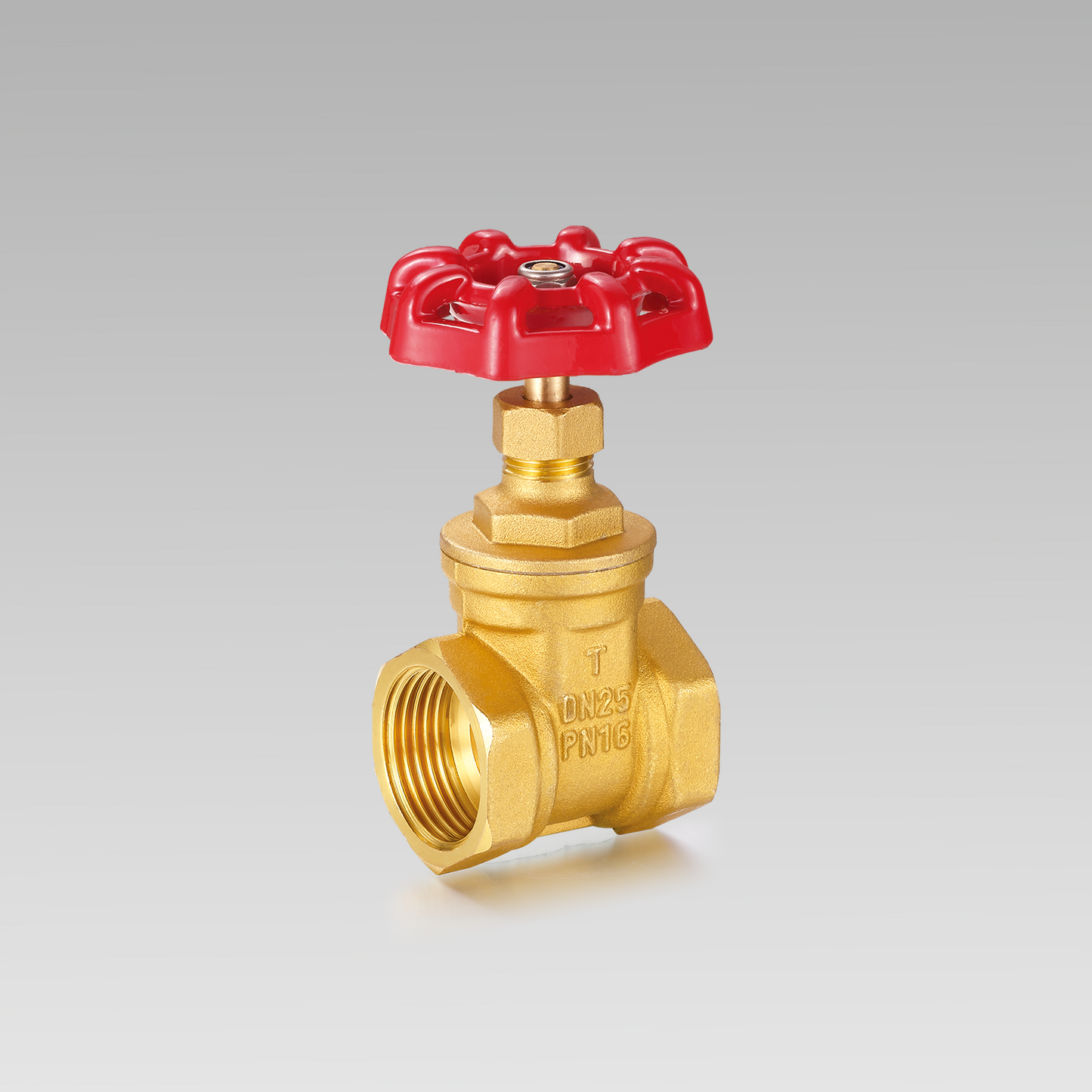

Brass gate valve YH-103

Brass gate valve YH-103

100 in stock

YH-103

Expected delivery date:
27 Sep Usually ready in 2-3 days.
Note: This is a demo store. The images have been sourced from Shutterstock and Adobe Stock.

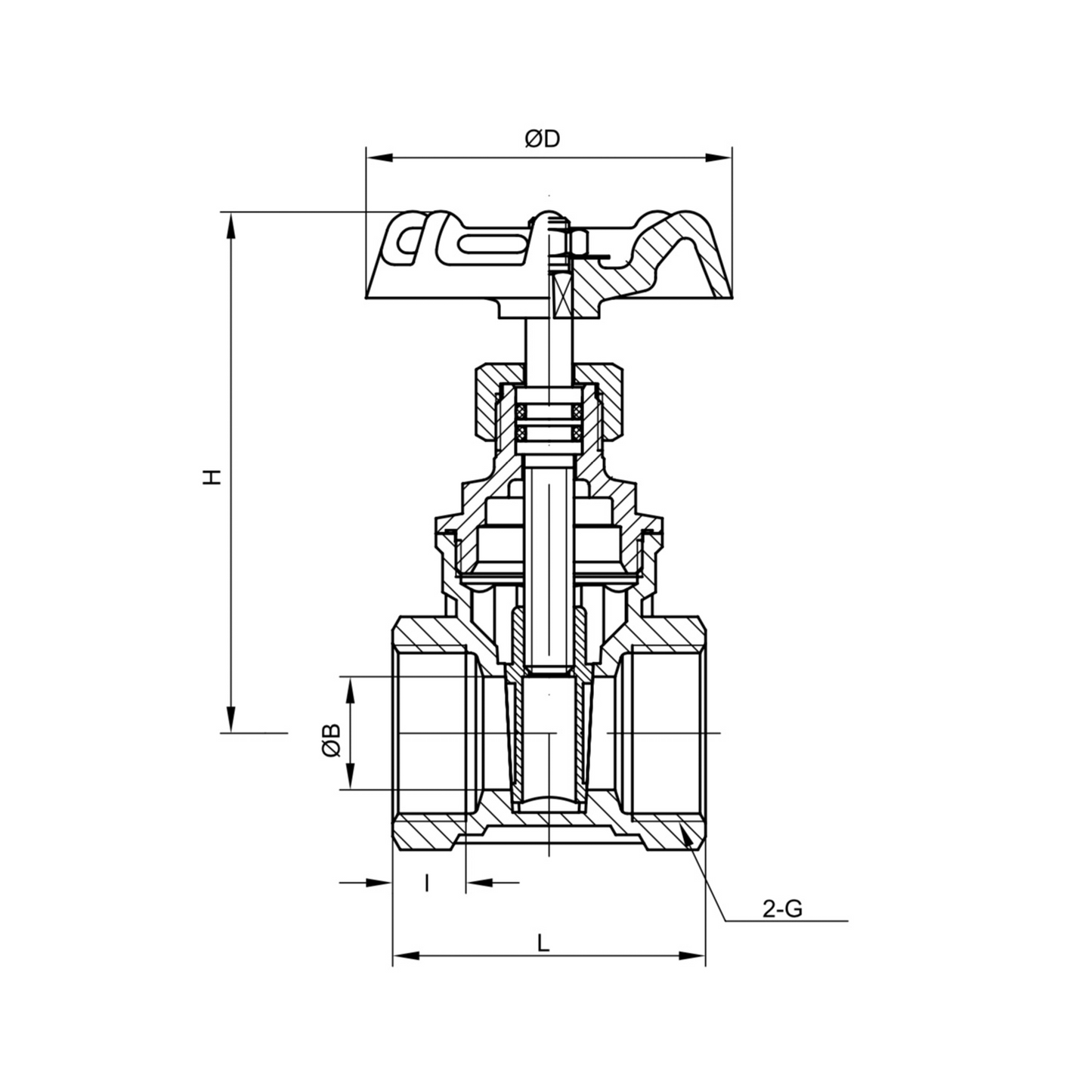

Specifications and size

DN15 1/2":

L: 43.5mm B: 13mm D: 54mm H: 75mm I: 10.5mm G: 1/2"

DN20 3/4":

L: 47mm B: 17mm D: 54mm H: 78.5mm I: 11mm G: 3/4"

DN25 1":

L: 52mm B: 21mm D: 60mm H: 84.4mm I: 13mm G: 1"

————————————————————————————————————————————————

DN32 1 1/4":

L: 57mm B: 27mm D: 72mm H: 98mm I: 13.5mm G: 1 1/4"

DN40 1 1/2":

L: 60mm B: 34mm D: 72mm H: 110mm I: 14mm G: 1 1/2"

DN50 2":

L: 69mm B: 45mm D: 80mm H: 135mm I: 16mm G: 2"

Specifications

x

Battery

x

Product title

Nominal Pressure:

1.6MPa

Working Medium:

Water, non-corrosive liquid;

Working Temperature:

0℃≤t≤120℃

Size

1/2", 3/4", 1", 1 1/4", 1 1/2", 2"

Thread

Parallel Pipe Thread to ISO228.

Brass gate valve YH-103
