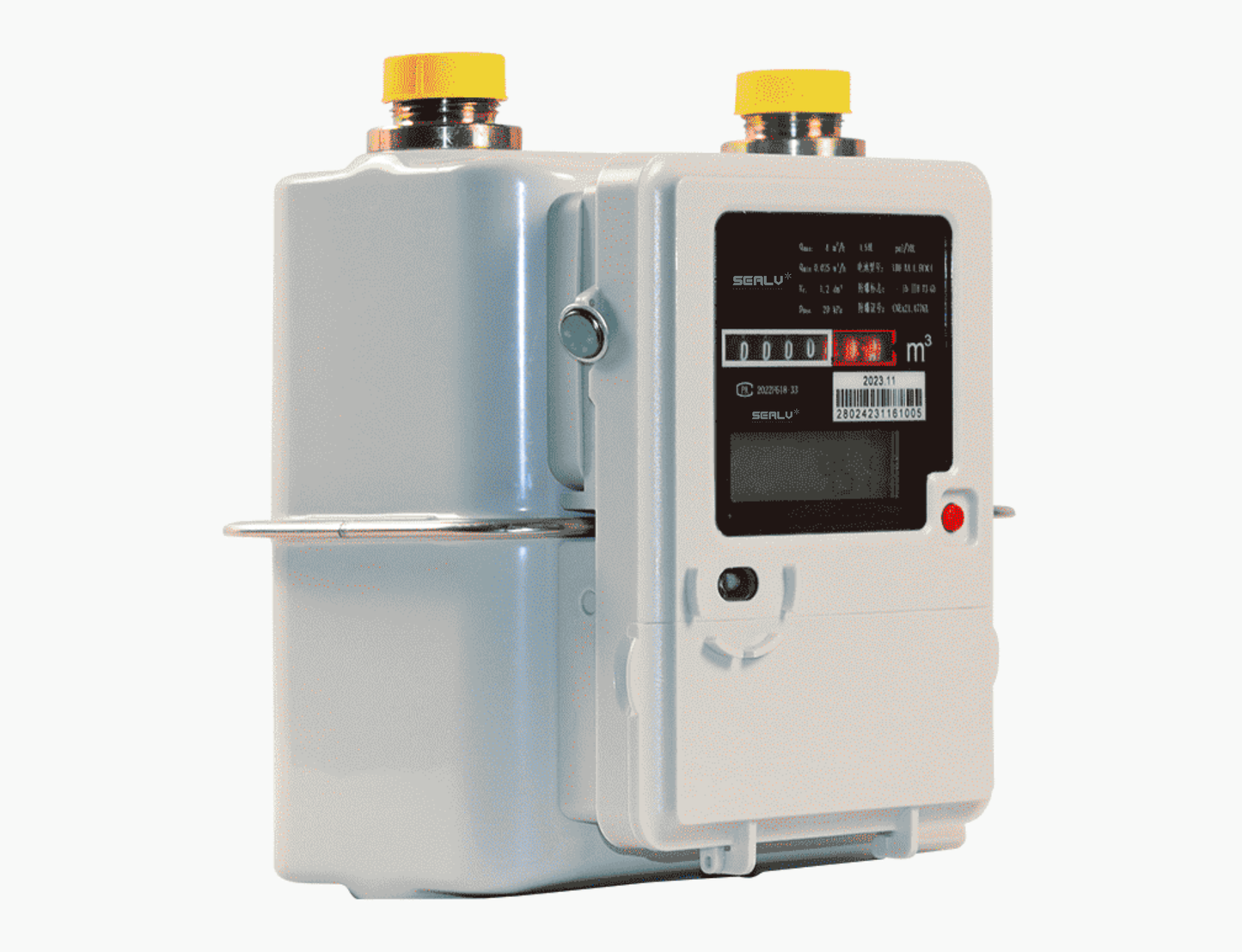

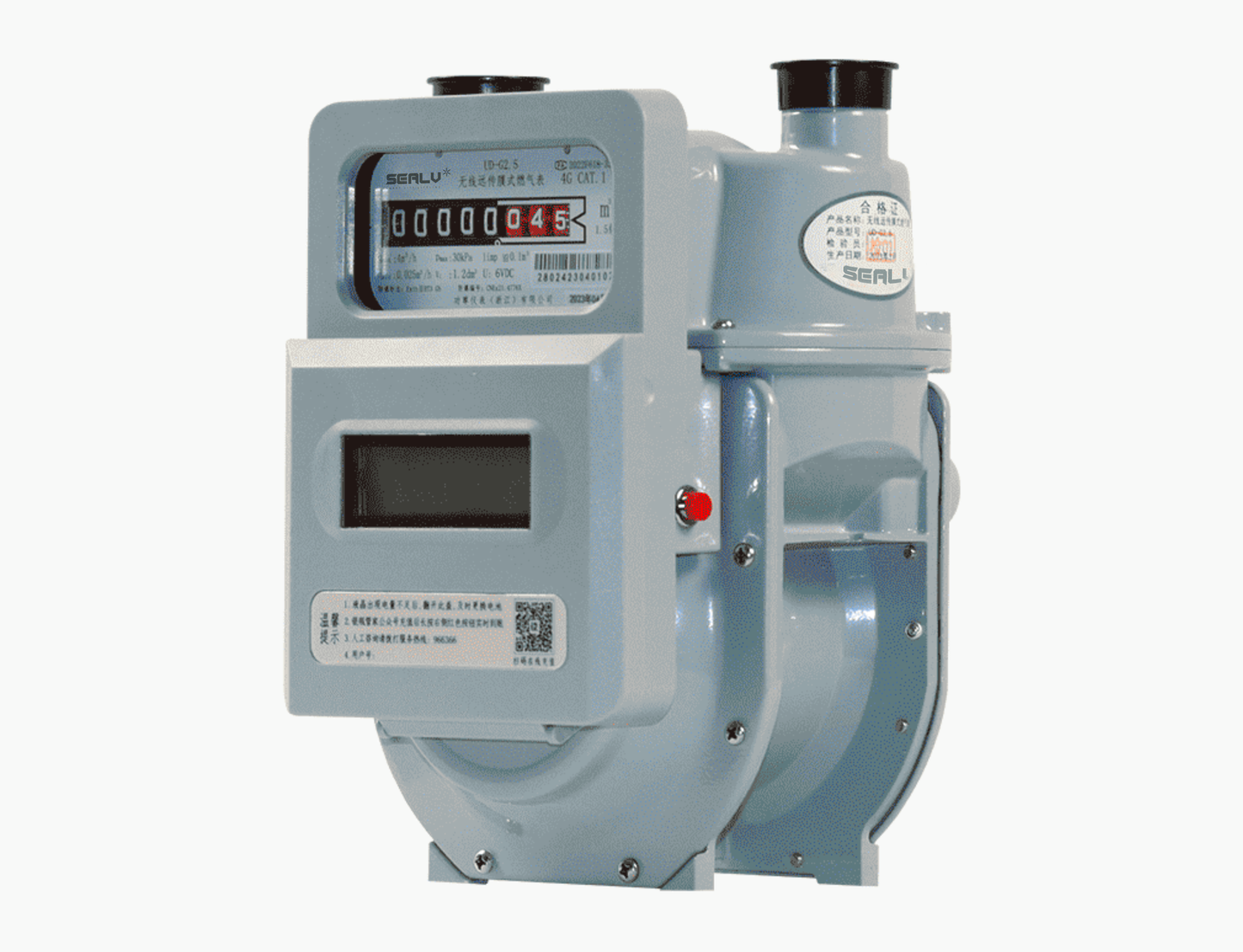

Smart NB-IoT Wireless Remote-Read Gas Meter

Smart NB-IoT Wireless Remote-Read Gas Meter

Product Overview:
Smart NB-IoT Wireless Remote Gas Meter Comprising a diaphragm gas meter, controller, control valve, and NB remote transmission module, powered by alkaline batteries. Supports remote meter reading, anomaly reporting, and valve control.

Applicable Scene:
Applicable to residential and commercial/industrial users, supporting prepaid, backend pre-settlement, and backend settlement modes.

Functional Characteristics

Remote Management: Data uploads once daily by default, supporting remote pricing adjustments, tiered billing, and valve control;

Abnormal Protection: Automatic valve closure upon excess flow, magnetic interference, low voltage, or prolonged communication/usage inactivity;

Data Storage: Records hourly/daily/monthly/annual gas consumption with freeze management capability.

Specifications

x

Battery

x

Product title

Measuring Range（m³/h）

G1.6/0.016~2.5 , G2.5/0.025~4 , G4/0.04-6 , G6/0.06-10

Working Pressure

50kPa

Accuracy Class

1.5 级

Communication Mode

NB-IoT/4G

Operating Temperature

-10℃~+40℃
