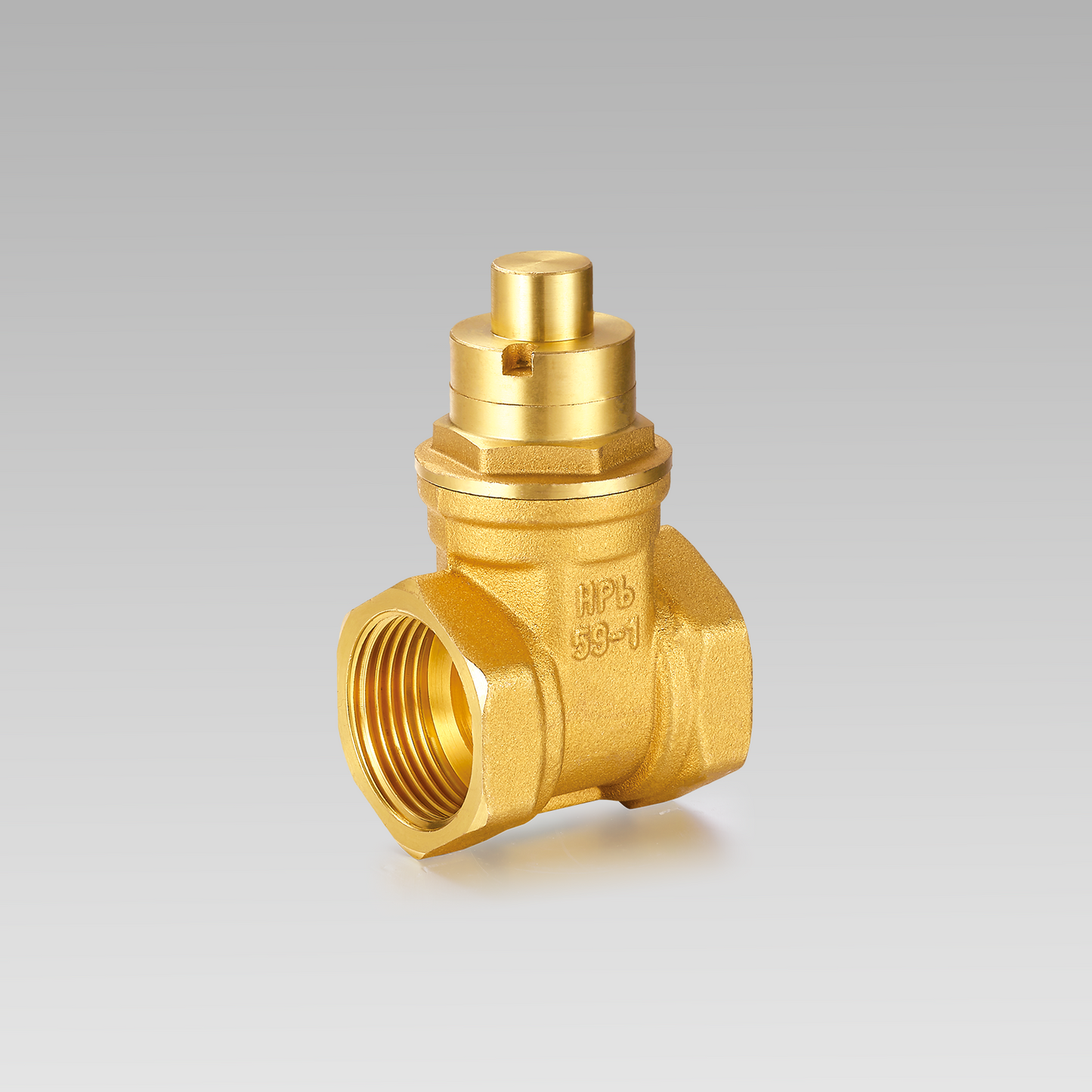

Magnetic lockable brass gate valve YH-101

Magnetic lockable brass gate valve YH-101

100 in stock

YH-101

Expected delivery date:
13 Nov Usually ready in 2-3 days.
Note: This is a demo store. The images have been sourced from Shutterstock and Adobe Stock.

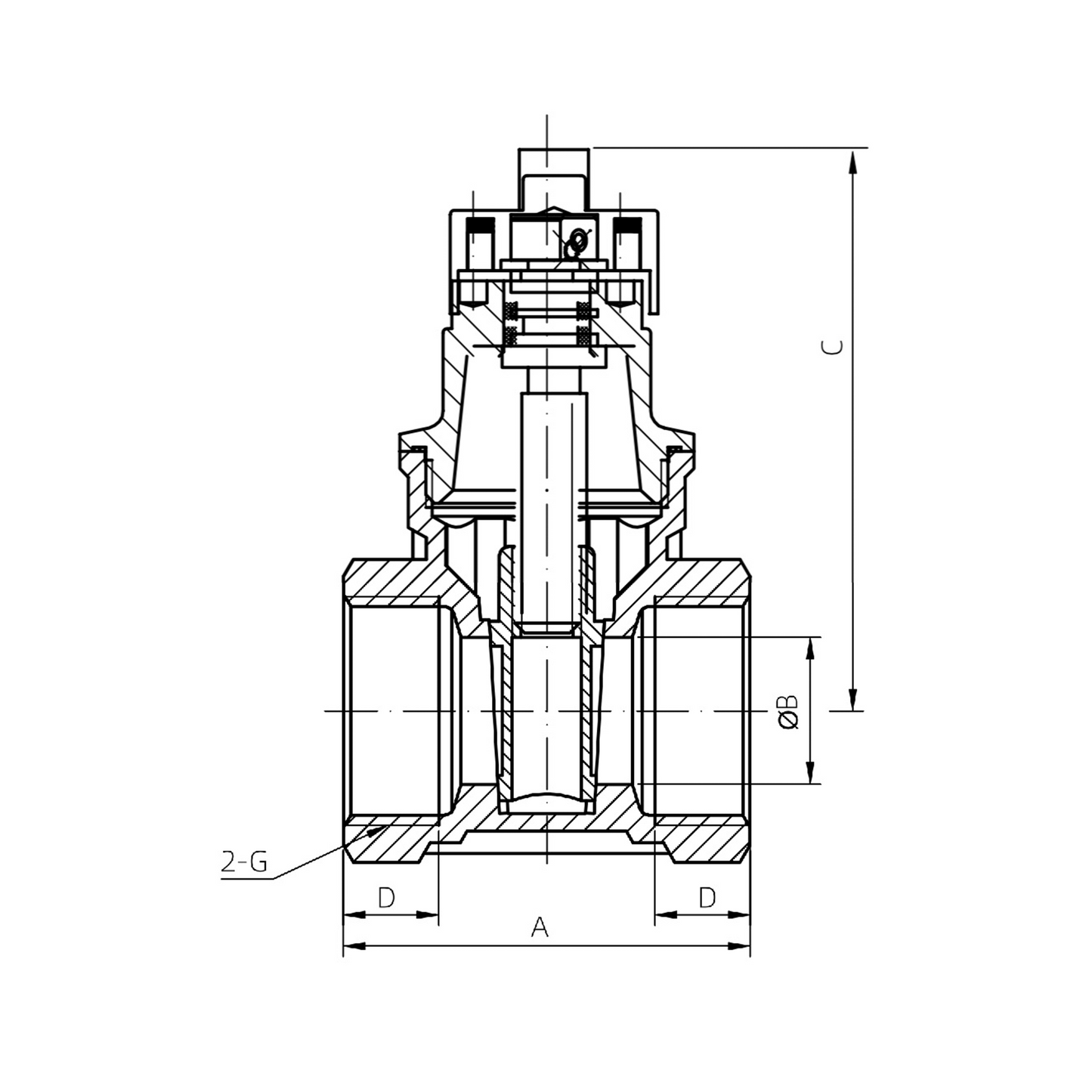

Specifications and size

DN15 1/2":

A: 43.5mm B: 13mm C: 75.5mm D: 10.5mm G: 1/2"

DN20 3/4":

A: 47mm B: 17mm C: 83.2mm D: 11mm G: 3/4"

DN25 1":

A: 52mm B: 21mm C: 90.2mm D: 13mm G: 1"

————————————————————————————————————————————————

DN30 1 1/4":

A: 57mm B: 27mm C: 77.5mm D: 13.5mm G: 1 1/4"

DN40 1 1/2":

A: 60mm B: 34mm C: 90.3mm D: 14mm G: 1 1/2"

DN50 2":

A: 67mm B: 45mm C: 108.8mm D: 15mm G: 2"

Specifications

x

Battery

x

Product title

Nominal Pressure:

1.6MPa

Working Medium:

Water, non-corrosive liquid;

Working Temperature:

0℃≤t≤120℃

Size

1/2", 3/4", 1", 1 1/4", 1 1/2", 2"

Thread

Parallel Pipe Thread to ISO228.
