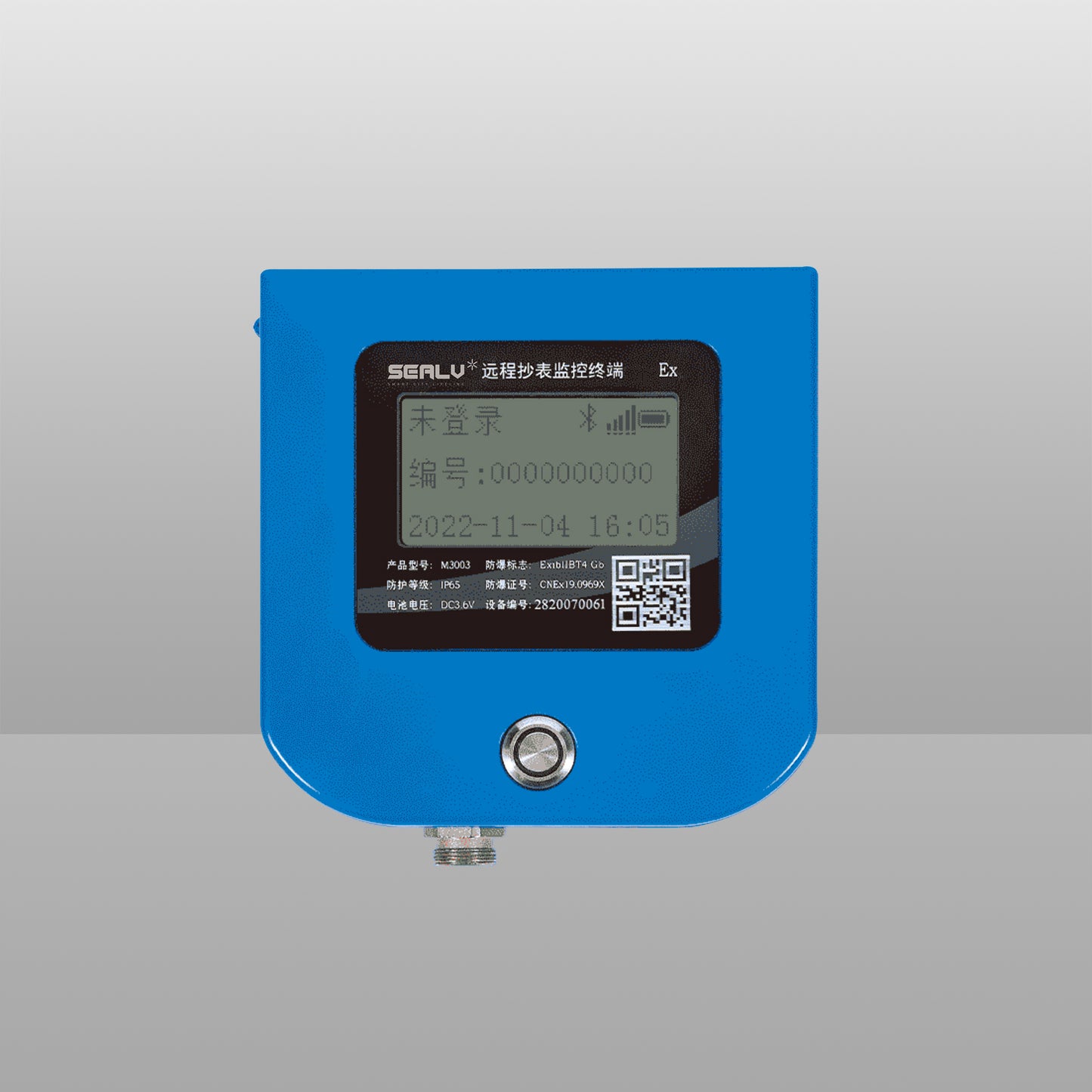

IoT Data Acquisition Terminal

IoT Data Acquisition Terminal

Product Overview:
Specifically designed for remote meter reading and monitoring of gas meters, supporting RS485 communication and pulse acquisition. Features an integrated 4G/NB-IoT module with low-power design (default battery life ≥6 years under normal operating conditions). Can be directly connected to various flow meters, valve controllers, and other instruments.


Applicable Scene:

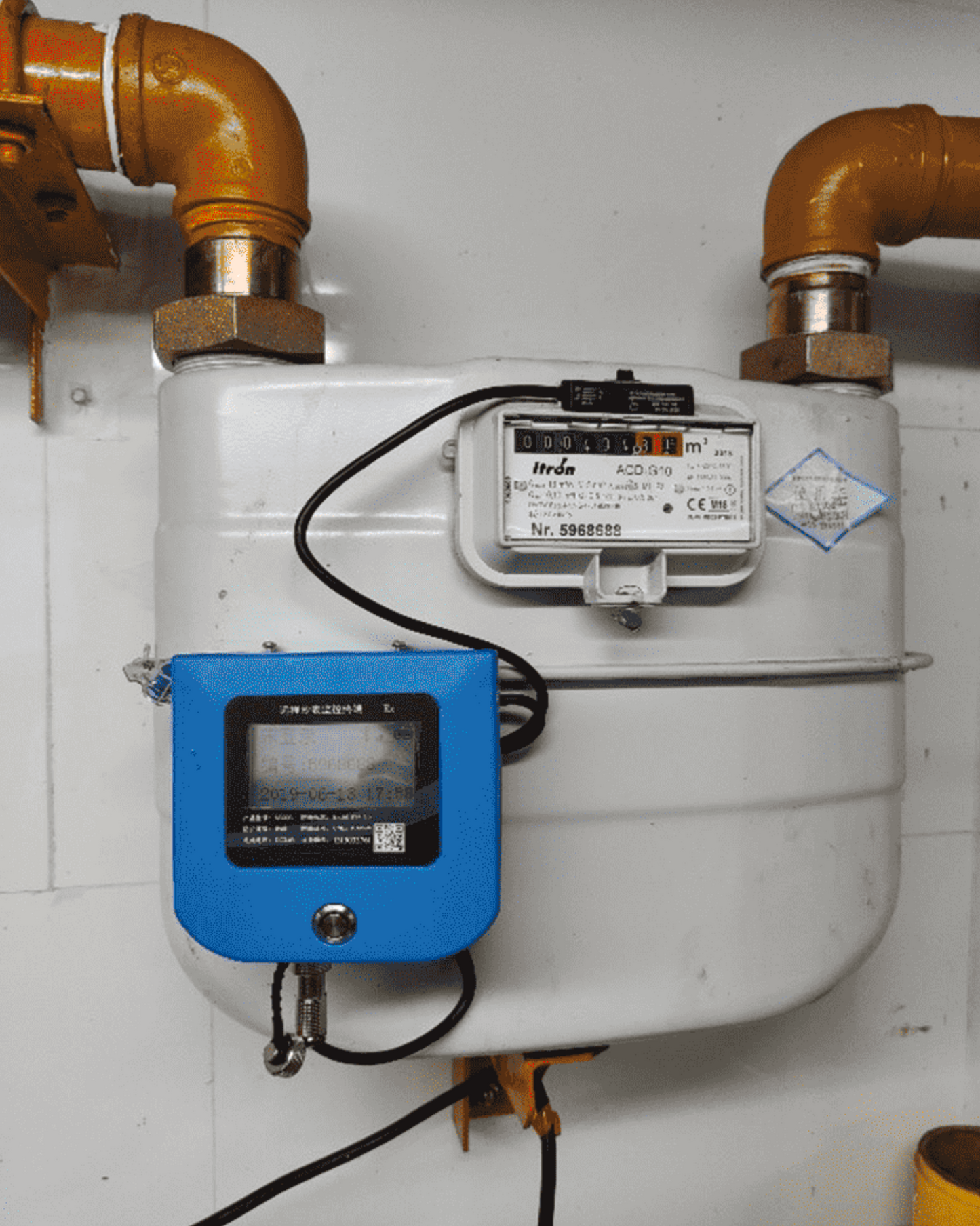

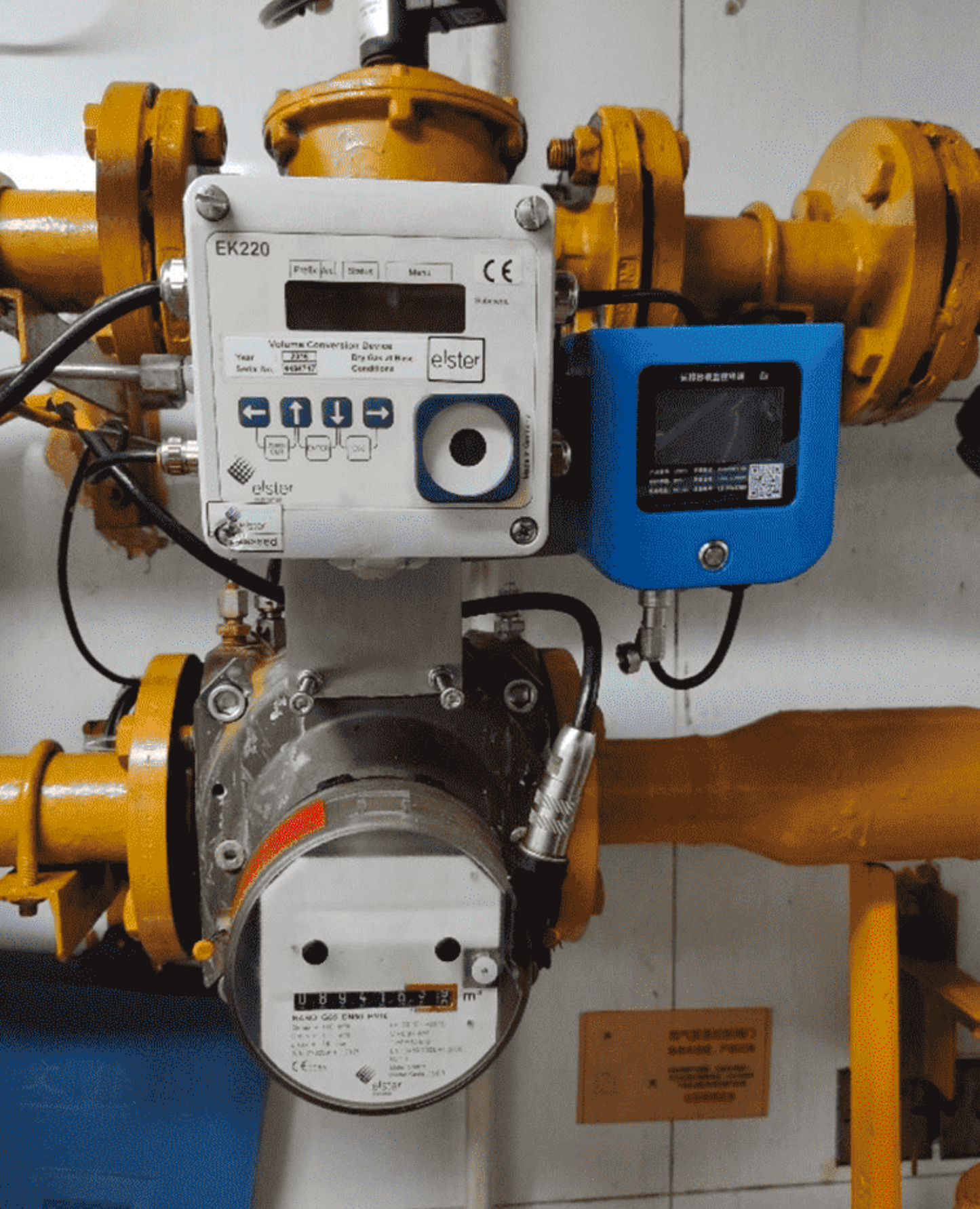

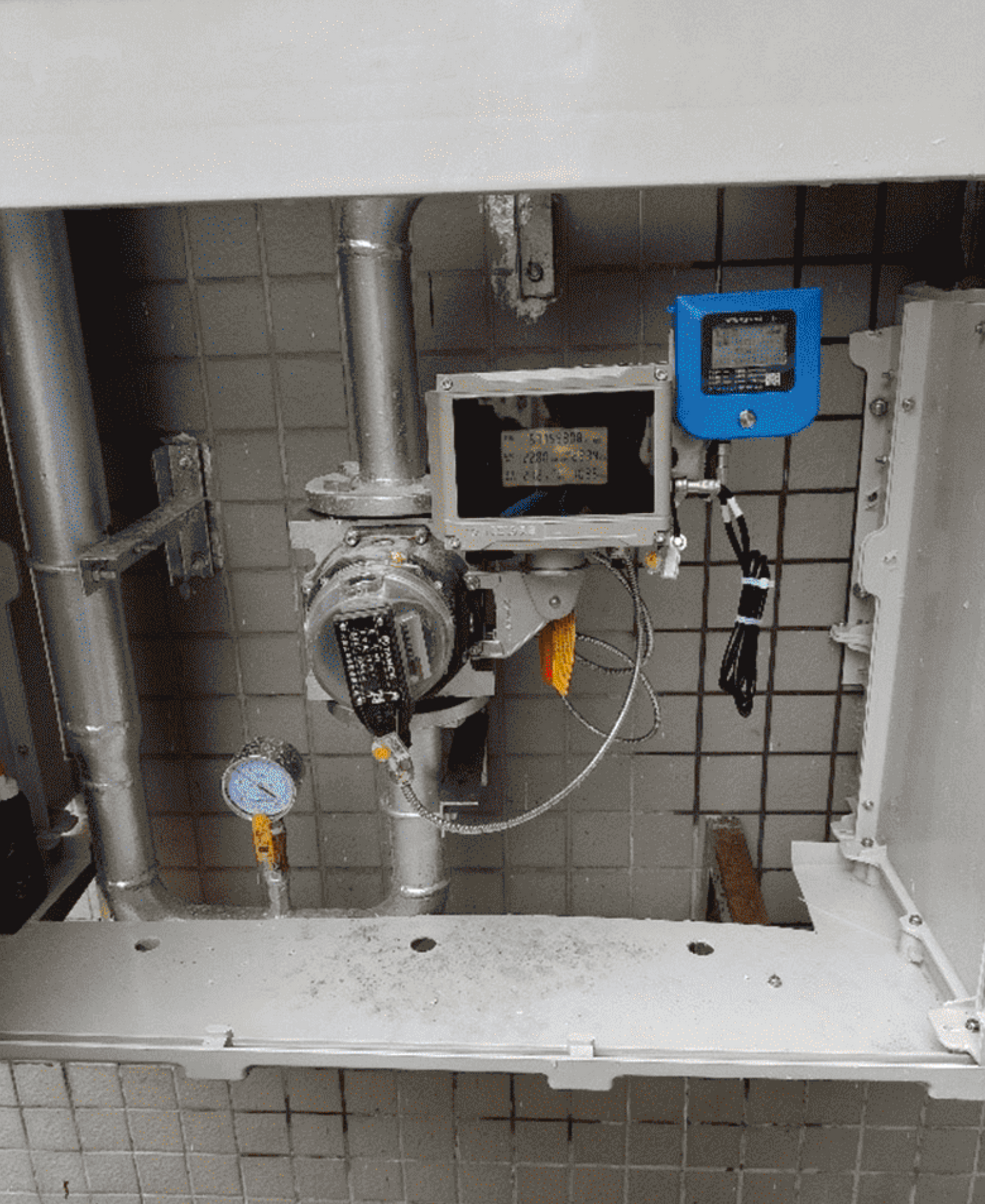

Applicable to IoT meter reading systems or SCGL system projects in the gas industry.

Functional Characteristics

Flexible Data Acquisition: RS485 interface for collecting flowmeter readings (standard/operating total volume, temperature, pressure); pulse interface compatible with non-communication instruments.

Remote Management: Supports remote parameter configuration (upload interval, sampling cycle) and firmware upgrades.

Power Output: Configurable 5V/9V/12V/24V output to accommodate different instrument voltages.

Specifications

x

Battery

x

Product title

Power Supply

DC 3.6V (2 lithium batteries connected in parallel)

Communication Mode

4G/NB-IoT

Maximum Output Power

≤1W

Protection Class

IP65

Explosion-Proof Sign

Ex ib ⅡB T4 Gb

Operating Temperature

-30℃~+65℃
