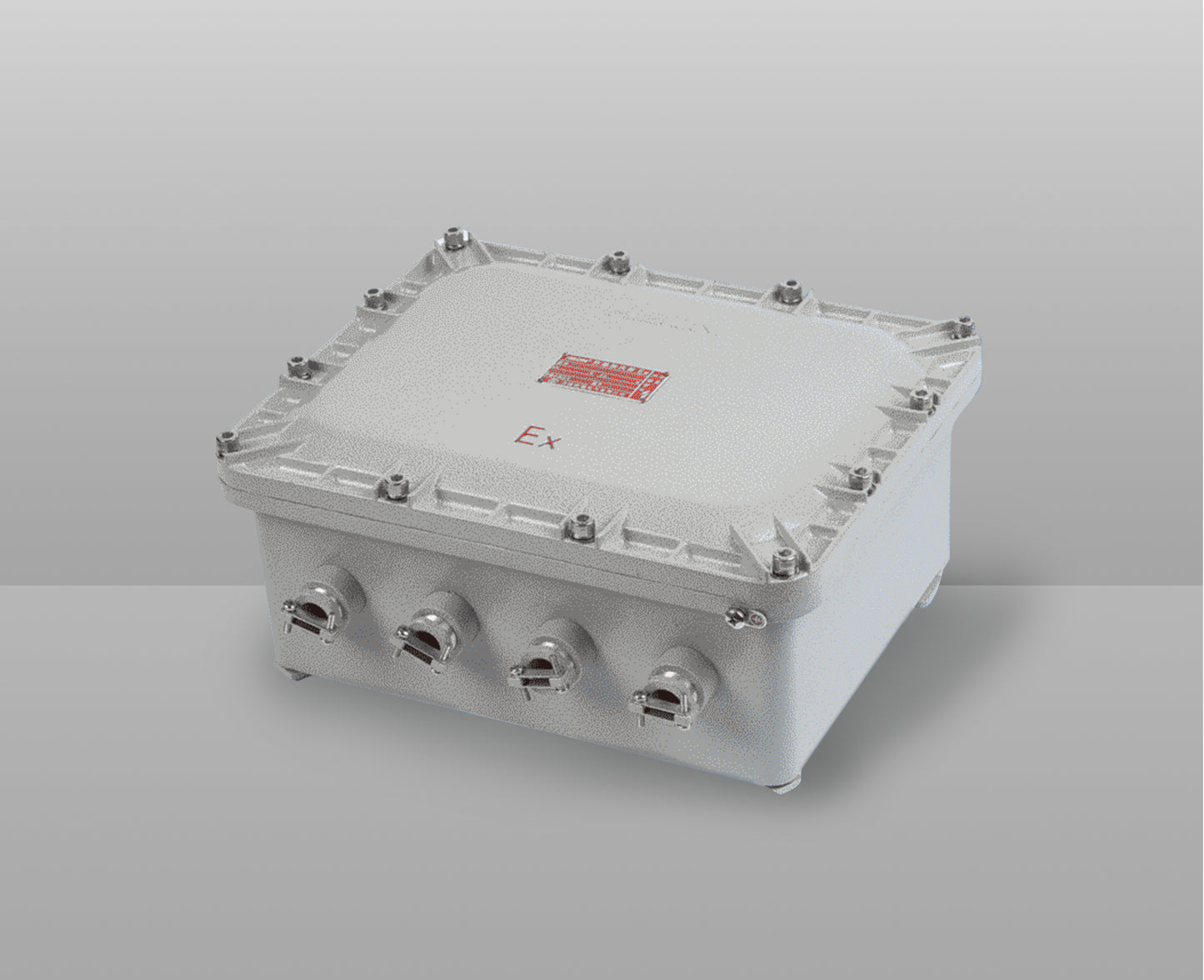

Smart Remote Data Monitoring Terminal RTU

Smart Remote Data Monitoring Terminal RTU

Product Overview:

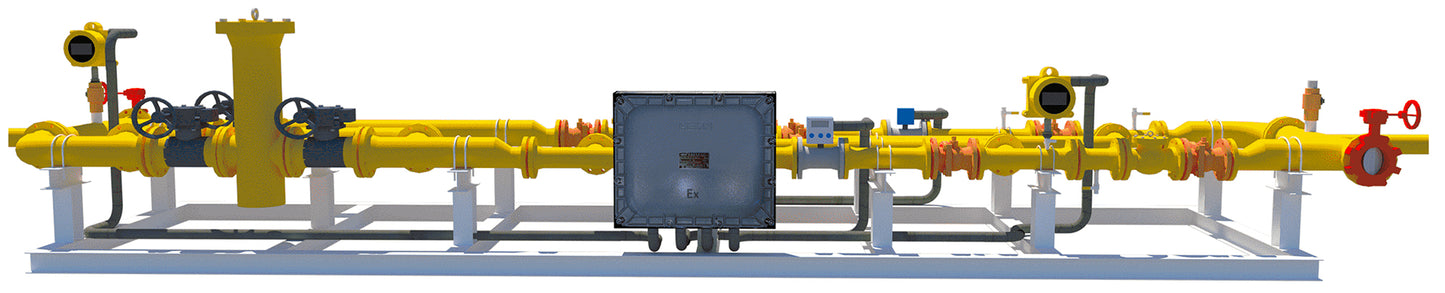

The RTU-100 can be directly connected to various gas meters such as flow meters and transmitters, or integrated with other environmental monitoring equipment. Designed for remote monitoring of gas pipeline network instruments, it interfaces with flow meters, transmitters, and environmental devices. Through 4G/NB-IoT connectivity and integration with the SCGL system, it enables centralized remote monitoring of front-end equipment and supports unattended operation.


Applicable Scene:
Applicable to IoT meter reading systems or SCGL system projects in the gas industry.

Functional Characteristics

Multi-Interface Compatibility: RS485/RS232/RS422 interfaces, integrated with protocols from multiple domestic and international flow meter manufacturers;

Multi-Type Data Acquisition: 8 analog channels (pressure/temperature), 5 digital channels (valve status), 2 digital outputs (valve control);

Power Failure Continuity: Mains/solar power supply with backup battery for sustained operation during outages.

Specifications

x

Battery

x

Product title

Power Supply

Solar Power / 220V Mains Power

Communication Mode

4G

Communication Interface

2 RS485 (expandable)

Analog Input

8 channels

Digital Input

5 channels

Digital Output

2 channels

Protection Class

IP65

Explosion-Proof Sign

Ex ib ⅡB T4 Gb

Operating Temperature

-30℃~+60℃
