Intelligent Distributed Pipeline Network Monitoring System

Intelligent Distributed Pipeline Network Monitoring System

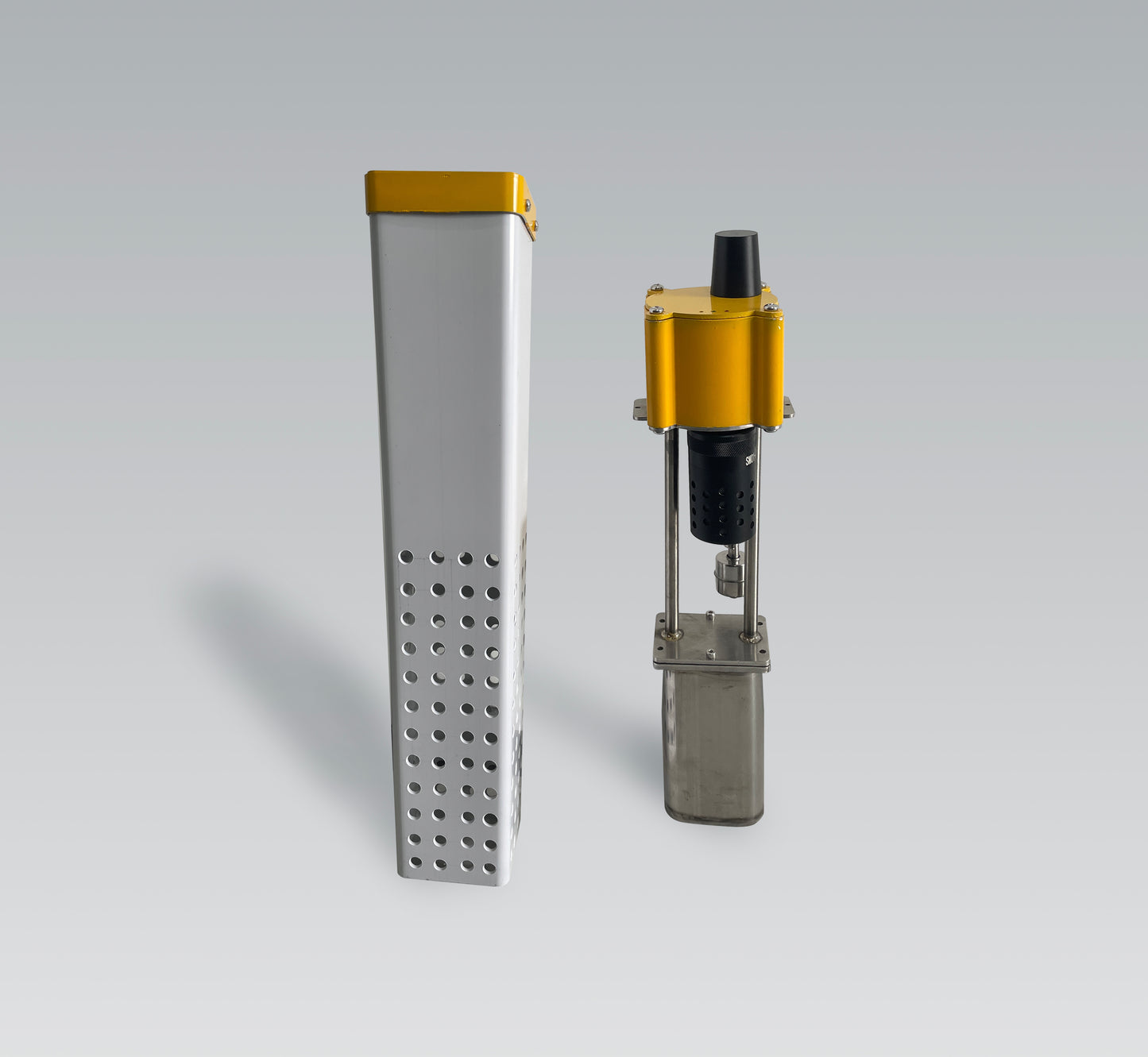

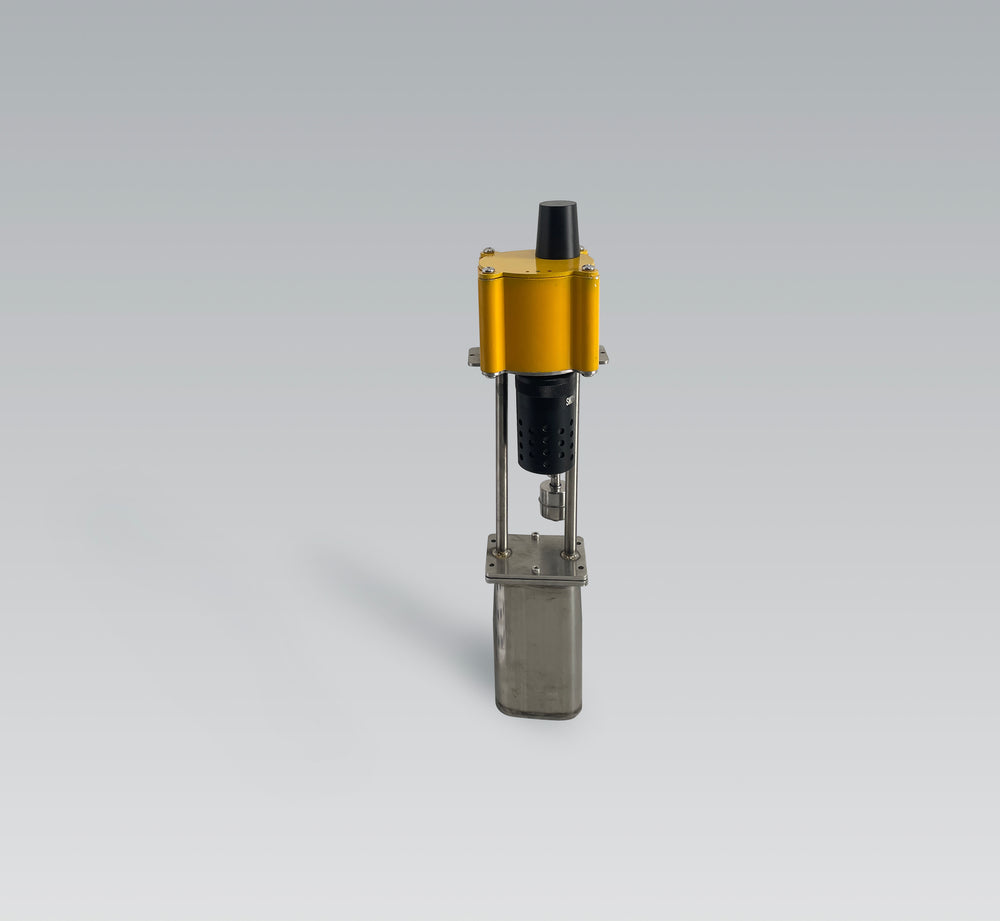

Product Overview:
The gas leak monitoring terminal detects natural gas concentration and other data at pipeline monitoring points via its sensors. Utilizing IoT technologies such as 4G, it transmits 24/7 monitoring data from these points to the IoT monitoring system platform. It triggers real-time alerts for anomalies, replacing traditional manual periodic inspections to ensure immediate awareness of hazardous conditions.

System Components

Utilizing the detection principle of Transient Diode-Lattice Absorption Spectroscopy (TDLAS), it is unaffected by interference from other gases and exhibits a low false alarm rate;

4G wireless IoT communication module enables remote data collection and real-time reporting of abnormal conditions;

Continuously monitors vibration and tilt at monitoring points, immediately uploading alarm notifications upon detecting vibration or equipment tilt;

Monitoring terminals support configurable alarm thresholds, continuously tracking concentration, temperature, and other parameters. Alarm data is instantly uploaded when values reach thresholds, providing timely alerts for pipeline network safety.

Specifications

x

Battery

x

Product title

Power Supply

3.6V Lithium Battery Power Supply

Detected Gas

CH4

Concentration Sensor

Laser Methane Sensor

Detection Range

0～100% LEL

Basic Error

±3% LEL

Operating Temperature

-30～60℃

Explosion-Proof Rating

Ex ia IIC T4 Ga

Protection Rating

IP68 (1m/1h)

Concentration Acquisition Cycle

1 minute - 24 hours (adjustable)

IoT Communication

4G Cat.1

Installation Method

Underground Installation and Marker Post Installation
