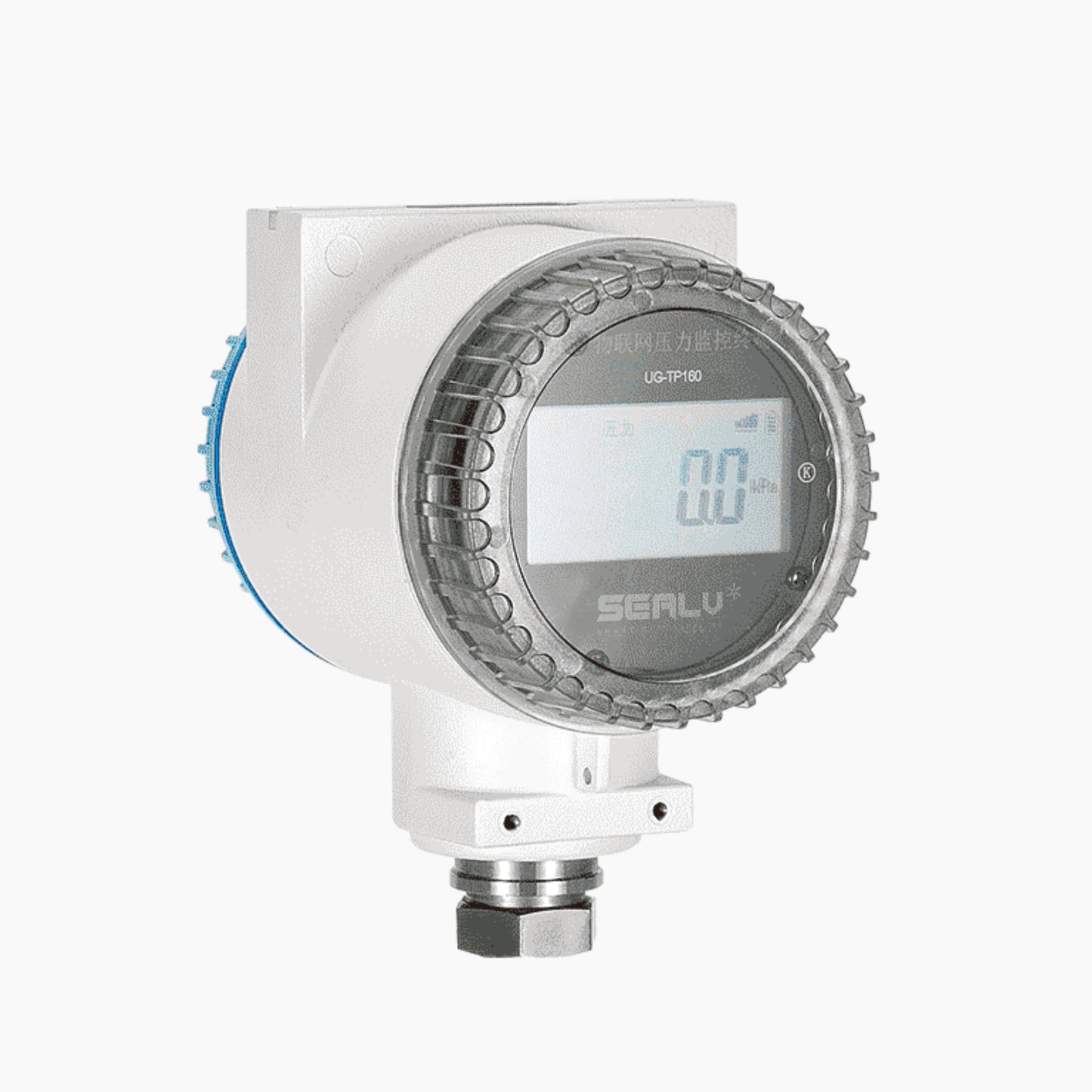

Smart IoT Pressure Monitoring Terminal

Smart IoT Pressure Monitoring Terminal

Product Overview:
Integrated with temperature and pressure acquisition, anomaly alarms, and 4G/NB-IoT remote transmission capabilities, this device operates on a lithium battery, eliminating the need for external power sources. It enables scheduled pressure data collection, analysis, remote transmission, and alarm functions for pipeline networks. Available as single-channel or dual-channel pressure monitoring terminals, it employs high-precision digital pressure sensors with temperature compensation.


Applicable Scene:
Suitable for remote pressure monitoring of urban gas pipeline networks.

Model and Specification

UG-TP0015S --------------- 0~10kPa -------------- Single Channel

UG-TP0100S --------------- 0~100kPa -------------- Single Channel

UG-TP0600S --------------- 0~600kPa -------------- Single Channel

UG-TP01600S -------------- 0~1.6MPa -------------- Single Channel

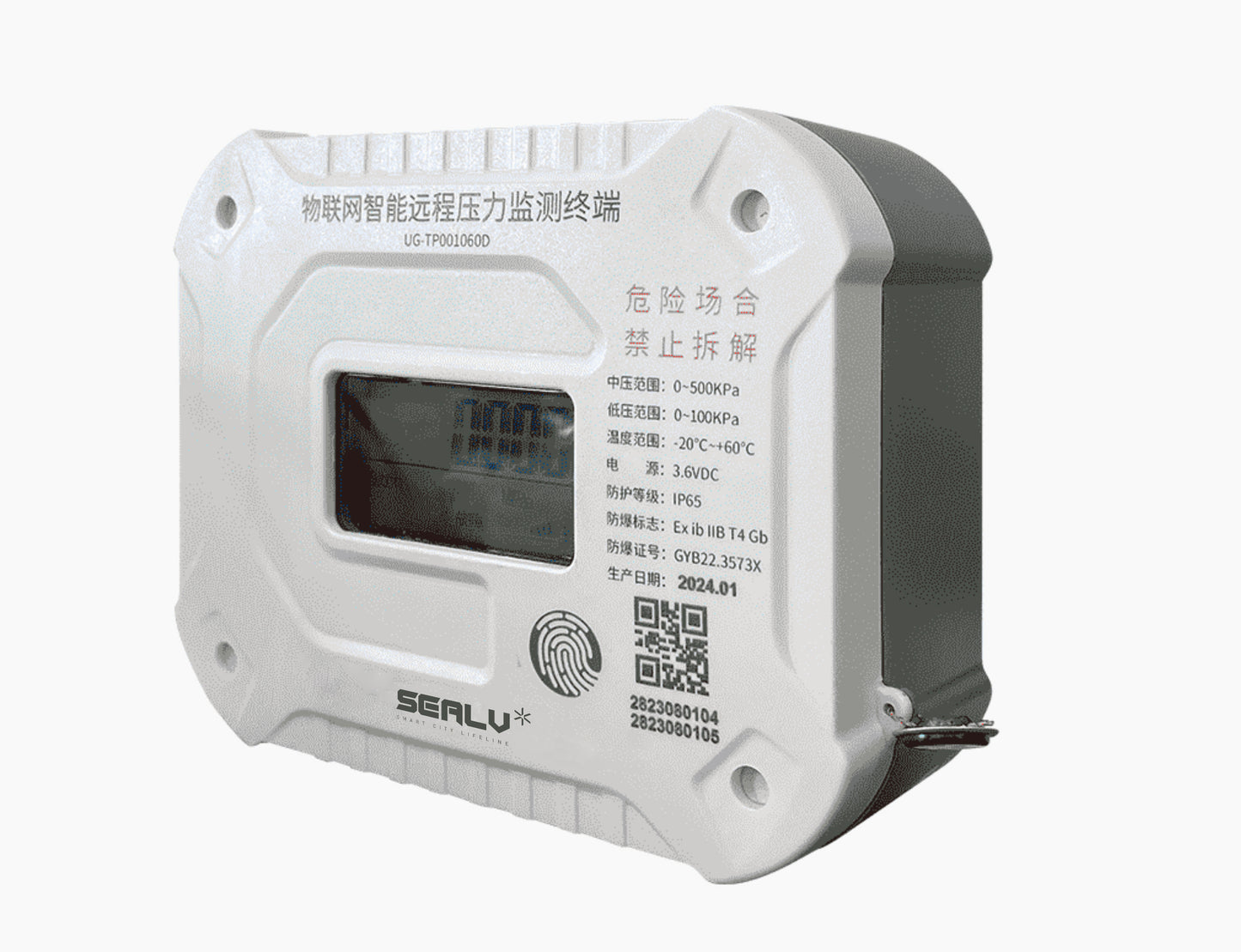

UG-TP0010600 ------------- 0~10kPa/0-600kPa -------------- Dual Channel

Specifications

x

Battery

x

Product title

Power Supply

DC 3.6V lithium batteries

Communication Mode

NB-IoT/4G

Interface Specification

M20×1.5 External Thread (customizable for G/NPT, etc.)

Accuracy Class

0.2%FS/0.5%FS

Protection Class

IP65/IP68

Explosion-Proof Sign

Ex ib ⅡB T4 Gb

Operating Temperature

-30℃~+70℃
